Sisteme de tavan funcționale și integrate

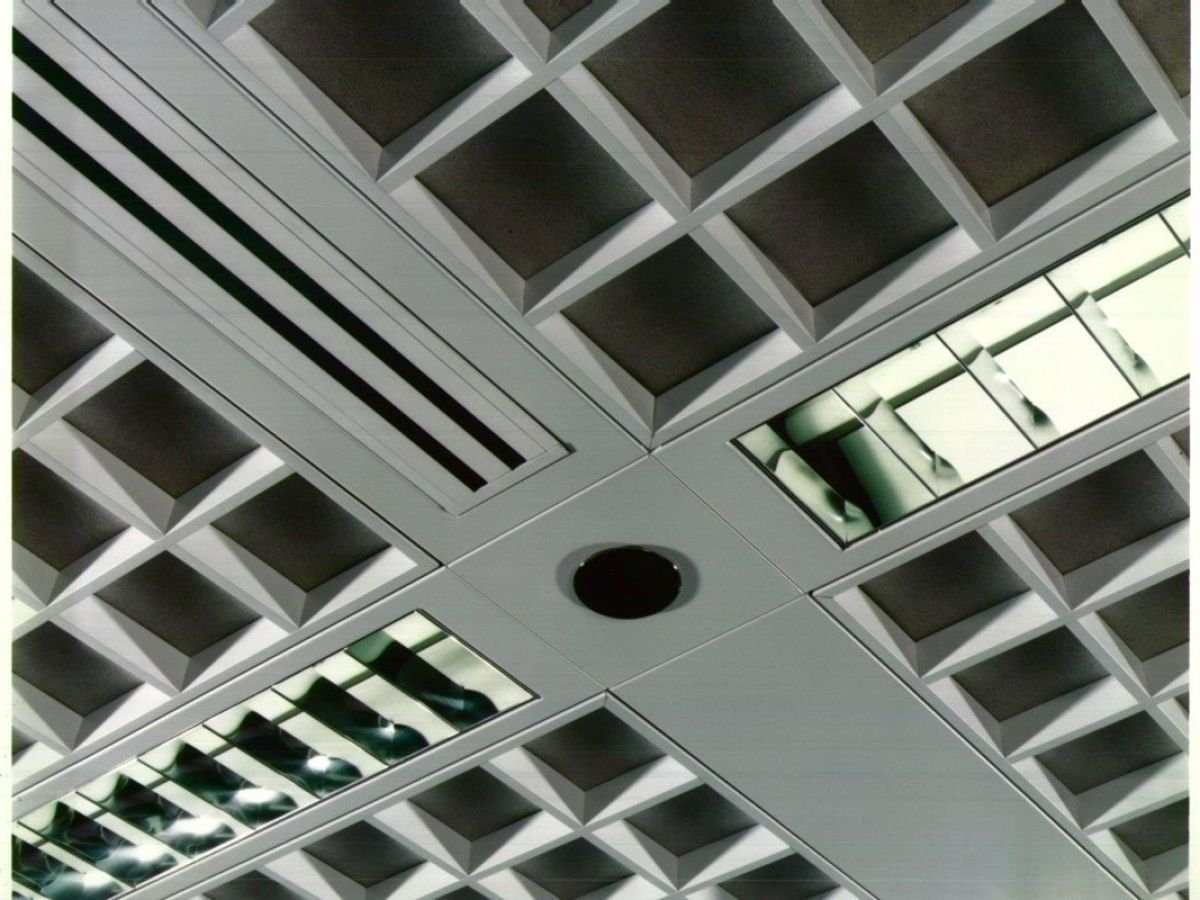

Tavan metalic rezistent la foc
Tavan metalic de protecție pasivă la foc cu panouri clasa A2-s1,d0 conform EN 13501-1 și rezistență la foc a sistemului EI 30-EI 120 conform EN 13501-2.
Material
DX51D+Z galvanized steel (EN 10346); aluminum option
Panel Thickness
Steel 0.5 - 0.8 mm
Module Sizes
600x600, 600x1200 mm
Surface Finish
RAL 9010 white polyester powder coating; any RAL on request
Certificări
- EN 13964
- EN 13501-1: A2-s1,d0
- EN 13501-2: EI 30-EI 120 (system, project-specific)
- ISO 9001 quality management
- CE (EU Construction Products Regulation)
Răspuns scurt
A fire rated metal ceiling is a passive fire protection solution using non-combustible A2-s1,d0 panels (A1 steel option) with system fire resistance EI 30-EI 120 per EN 13501-2. Galvanized steel panels in 600x600 and 600x1200 mm modules achieve NRC 0.55-0.80 with acoustic infill; typical production time is 2-4 weeks.
The fire rated metal ceiling system is designed as a core element of a building's passive fire protection strategy in hospitals, schools, shopping malls, data centers and industrial facilities. Unlike combustible mineral fiber tiles, metal panels keep their structure during a fire and carry no risk of dripping, flaking or soot release.
Panels are produced from DX51D+Z galvanized steel per EN 10346 in 0.5-0.8 mm thickness and achieve class A2-s1,d0 per EN 13501-1; a full-steel version provides class A1. The carrier grid uses ASTM C635 compliant profiles and 4 mm galvanized suspension wires; all system components are selected from non-combustible materials.
In high-risk spaces the complete system matters, not only the panel class: with the correct infill, edge detail and service penetration solutions, the system is engineered to target fire resistance from EI 30 up to EI 120 per EN 13501-2. Demountable panel details, fire access doors and service escutcheons are planned together with certified system configurations to support fire compartmentation.
Acoustically, the combination of perforation and mineral infill achieves sound absorption of NRC 0.55-0.80 measured per ASTM C423, and contributes inter-room sound insulation of CAC 25-35 dB per ASTM E1414. The galvanized structure offers long corrosion life even in humid technical spaces.
Installation covers approval of the system detail according to your fire design file, erection of grid and hangers, sealing of wall junctions with fire-stopping details and placement of panels. Typical production time is 2-4 weeks. Hospitals, schools, malls, data centers, parking areas and industrial plants are the main application fields; our project team coordinates details together with your fire consultant.
| Material | DX51D+Z galvanized steel (EN 10346); aluminum option |
|---|---|
| Panel Thickness | Steel 0.5 - 0.8 mm |
| Module Sizes | 600x600, 600x1200 mm |
| Surface Finish | RAL 9010 white polyester powder coating; any RAL on request |
| Perforation | Plain or perforated with mineral acoustic infill |
| Acoustic Performance | NRC 0.55 - 0.80 (ASTM C423); CAC 25 - 35 dB (ASTM E1414) |
| Fire Classification | Panel: EN 13501-1 A2-s1,d0 (A1 steel option); System: EN 13501-2 EI 30 - EI 120 |
| Installation System | Lay-in / clip-in on ASTM C635 compliant grid, 4 mm wire |
| Weight | 4.0 - 7.0 kg/m2 (with infill) |
- Hospitals and healthcare facilities
- Schools and educational buildings
- Malls and heavy-traffic commercial areas
- Data centers and technical rooms
- Industrial plants and storage areas
- Parking areas and shared volumes
- Airports and public transport buildings
- EN 13501-1 class A2-s1,d0 non-combustible panel; A1 steel option
- System fire resistance target EI 30 - EI 120 per EN 13501-2
- Demountable panel details supporting fire compartmentation
- Compatible with fire access doors and service escutcheons
- NRC 0.55 - 0.80 sound absorption with acoustic infill
- CAC 25 - 35 dB inter-room insulation contribution
- Robust carrier with ASTM C635 compliant grid and 4 mm wire
- Any RAL color option
Instalare și aplicare
- 1 The system detail (EI class) and suspension layout are approved according to your fire design file.
- 2 The ASTM C635 compliant carrier grid is installed with 4 mm galvanized wires at laser level.
- 3 Wall junctions and perimeter joints are closed with fire-stopping details.
- 4 Panels are placed as lay-in or clip-in and mineral infills are added.
- 5 Access doors and luminaire openings are completed with suitable escutcheons and covers.
- 6 Inspection, cleaning and handover; maintenance training covers re-sealing of opened points.
Întrebări frecvente
Panourile ating clasa A2-s1,d0 conform EN 13501-1; este disponibilă o variantă integral din oțel galvanizat care oferă clasa A1.
Da. Cu umplutura corectă, detaliile de margine și soluțiile pentru trecerea instalațiilor, sistemul este construit pentru a atinge EI 30 până la EI 120 conform EN 13501-2, specific fiecărui proiect.
Module standard de 600x600 și 600x1200 mm produse din oțel galvanizat DX51D+Z conform EN 10346, în grosime de 0,5-0,8 mm.
Cu perforare și umplutură minerală se obține absorbție fonică de NRC 0,55-0,80 conform ASTM C423 și izolare între camere de CAC 25-35 dB conform ASTM E1414.
Panourile se șterg cu o cârpă umedă și detergent neutru; detaliile demontabile permit accesul la spațiul tehnic. După întreținere, punctele deschise trebuie resigilate la inspecția periodică.
Timpul tipic de producție este de 2-4 săptămâni; pentru sistemele clasificate EI, dosarul de detalii aprobat al proiectului se finalizează înainte de producție.
